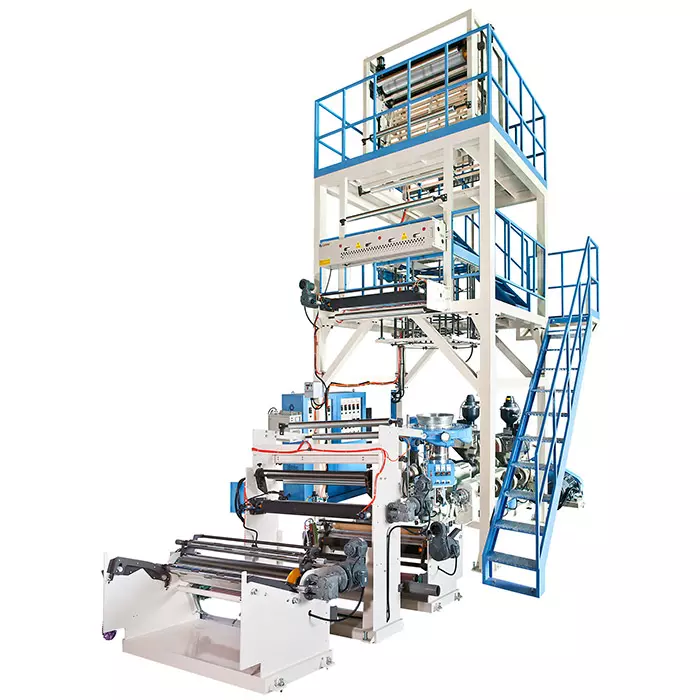

ABA Plastic Film Making Machine (Small Size)
ABA plastic film making and production machine (small size)
This machine is used to produce and manufacture plastic films such as HDPE, LDPE, LLDPE, etc.
The design and capacity of the screwdriver varies according to the desired productivity and shape.
| Screw diameter | φ45×50 |
| Film width (mm) | 300-900mm |
| Film thickness (mm) | HDPE 0.008-0.06 |
| Template size | HDPE ABA φ80/100( can add LD die head) |
| Maximum productivity (kg/hour) | 160kg |
| Screw Length: L/D | 32:1 |
| Screw and cylinder material | Bimetallic |
| Main Engine | 18kw×22kw Siemens |
| Gearbox model | 146×146 |
| Take up motor (kw) | kw1.5 |
| Blower (kW) | kw5.5 |
| Weight | T4.2 |
