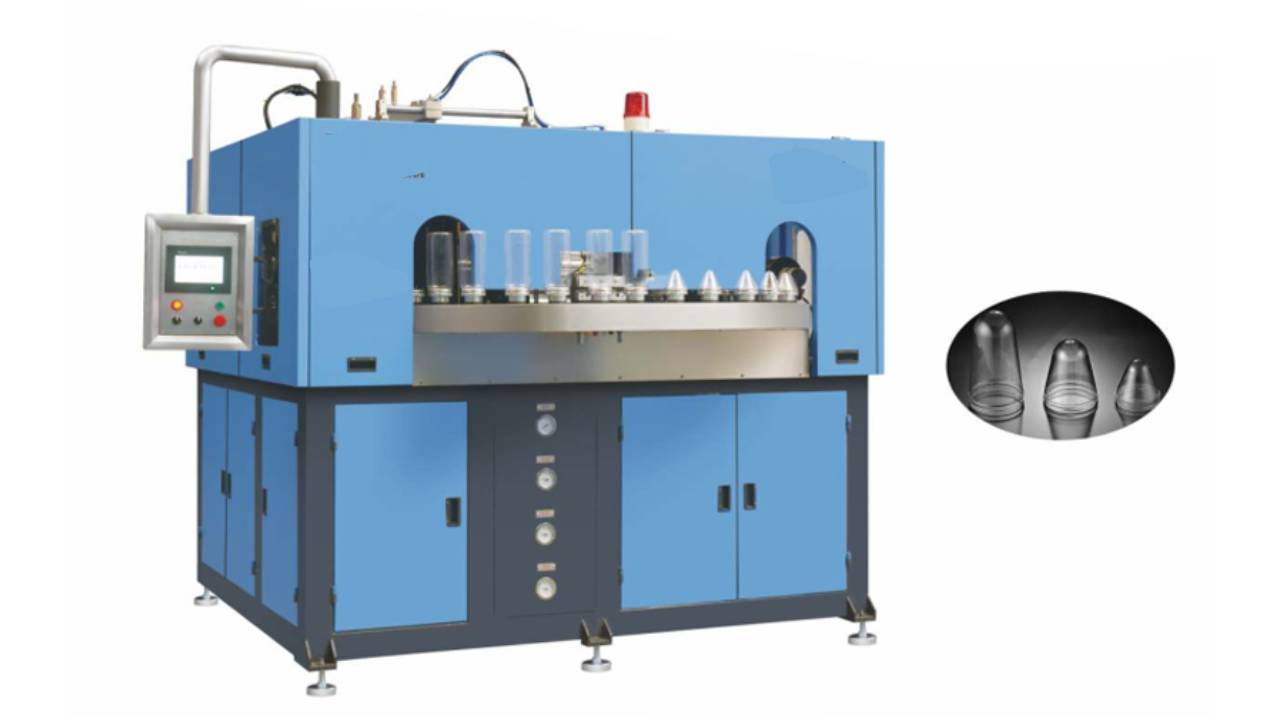

2 Cavity- 2L Automatic Jar Blowing Machine - Manual Feeding
2 Cavity- 2L Automatic Jar Blowing Machine - Manual Feeding
Bottle | Maximum Bottle volume (L) | 2 |
Maximum Bottle Neck Diameter mm | 110 | |
Maximum Bottle Diameter mm | 110 | |
Maximum Bottle Height mm | 300 |
Model | MSBT1 | MSBT2 | ||
Moulding | Holding force kg | 18000 | 18000 | |
Fixing stroke mm | 145 | 125 | ||
Tidal stroke mm | 450 | 300 | ||
Bottom stroke mm | 40/70 | 40/70 | ||
Cavitate spacing mm | 140 | 120 | ||
Number of Cavitate | 2 | 2 | ||
Transportation unit (piece) | 52 | 66 | ||
Theoretical Output | bph | 1800-2200 | 1800-2200 | |
Electrical system | Total power KW | 50 | 26 | |
Thermal power in KW | 32x1.5KW=48 | 16x1.5KW=24 | ||
Number of lamp layers | 8 | 8 | ||
Air System | Operating Pressure kg/cm² | 9-7 | 9-7 | |
Low pressure air consumption L/min | 1600 | 1600 | ||
Blowing pressure kg/cm² | 20-30 | 20-30 | ||
High air pressure consumption L/min | 1600 | 1600 | ||
Refrigerant | Operating pressure kg/cm² | 4-2 | 4-2 | |
Heat rate ℃ | 12-10 | 12-10 | ||
Consumption kcal/hr | 2000 | 2000 | ||
Flow rate Itr/min | \ | \ | ||
Main machine | Main machine dimensions mm(L*W*H) | 2450 x2250x2250 | 1950 x1850x2100 | |
Weight of main machine kg | 2850 | 1950 | ||
Form Loader | Form Loader Dimensions mm(L*W*H) | \ | 1350x1250x2200 | |
Form loader weight kg | \ | 800 |
