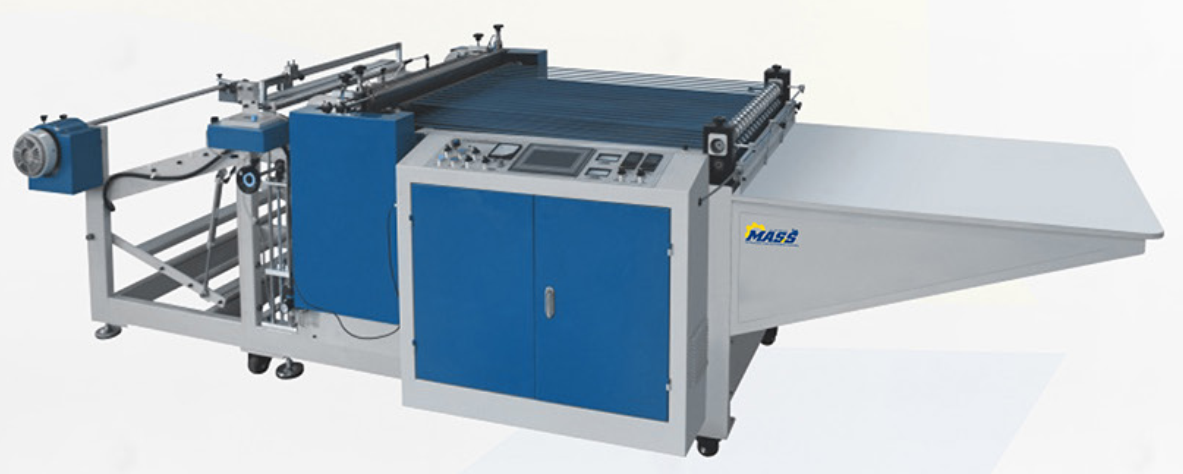

Heavy Duty Bag Making Machine

Heavy Duty Bag Making Machine: The main product of this machine is all plastic packaging bags, but it is also capable of producing packaging bags for other materials, of different sizes and thicknesses, as it can weld and cut a bag with a maximum thickness of 600 microns.

The welding line is not stretchable, so the thickness does not matter whether the film is thick or thin. In addition, the welding line does its work in a balanced and consistent way, right and left. Also, the welding knife and cutting knife are located together, so the distance between them is very acceptable.

Model
Max bag width (mm)6008001000
Max bag length (mm)100-1500100-1500100-1500
Speed40-15040-15020-150
Total electrical energy44.55
Maximum thickness500 Micron500 Micron500 Micron
Weight (kg)100011001200
External dimensions (m)4.0*1.2*1.54.0*1.4*1.54.0*1.6*1.5
